GPS Module, UART TTL level, GLONASS GPS module with FLASH, CIROCOMM 0010 Antenna, BN-250

  • $33.78
    单价 单价


25*25*6mm GPS Module + Antenna UART TTL level GPS GLONASS BEIDOU GALILEO SBAS QZSS module with antenna FLASH,BN-250


PRODUCT DISCRIPTION


Model:BN-250 GPS module

Features:




Iitem



Description



Electrical Characteristics



Chipset



M8030-KT



Frequency



GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1



Receiving Format



GPS, GLONASS, BDS, GALILEO, SBAS, QZSS.



Default GPS, GLONASS, SBAS, QZSS.



Channels



72 Searching Channel



Sensitivity



Tracking



-167dBm



Reacquisition



-160dBm



Cold Start



-148dBm



Hot Start



-156dBm



Accuracy



Position Horizontal



2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)



Velocity



0.1m/sec 95% (SA off)



Timing



1us synchronized to GPS time



Acquisition Time



Cold Start



26s



Warm Start



25s



Hot Start



1s



Data Output



Support Rate



4800bps to 921600bps, Default 9600bps



Data Level



TTL Level



Data Protocol



NMEA-0183



NMEA Message



RMC, VTG, GGA, GSA, GSV, GLL



Update Rate



1Hz-10Hz, Default 1Hz



FLASH



4M FLASH, Store the configuration permanently



Operational Limits



Altitude



<50,000m



Velocity



<515m/s



Acceleration



<4g



Power Consumption



VCC



DC Voltage 3.6V-5.5V, Typical: 5.0V



Current



Capture 50mA/5.0V



Mechanical Specifications



Dimension



25mm*25mm*6mm



Weight



7.5g



Connector



1.00mm 4pins connector



Environment



Operating Temp



-40 °C ~ +85°C



Storage Temp



-40°C ~ +105°C



LED



Built-in LED



TX LED: blue. The data output, TX LED flashing



PPS LED: red. PPS LED not bright when GPS not fixed, flashing when fixed






Pin Description:




PIN



PIN Name



I/O



Description



1



GND



G



Ground



2



TX



O



Serial Data Output.



3



RX



I



Serial Data Input.



BN-250-Datasheet-22-E



GPS-22








PACKING LIST





1 Piece GPS Module BN-250

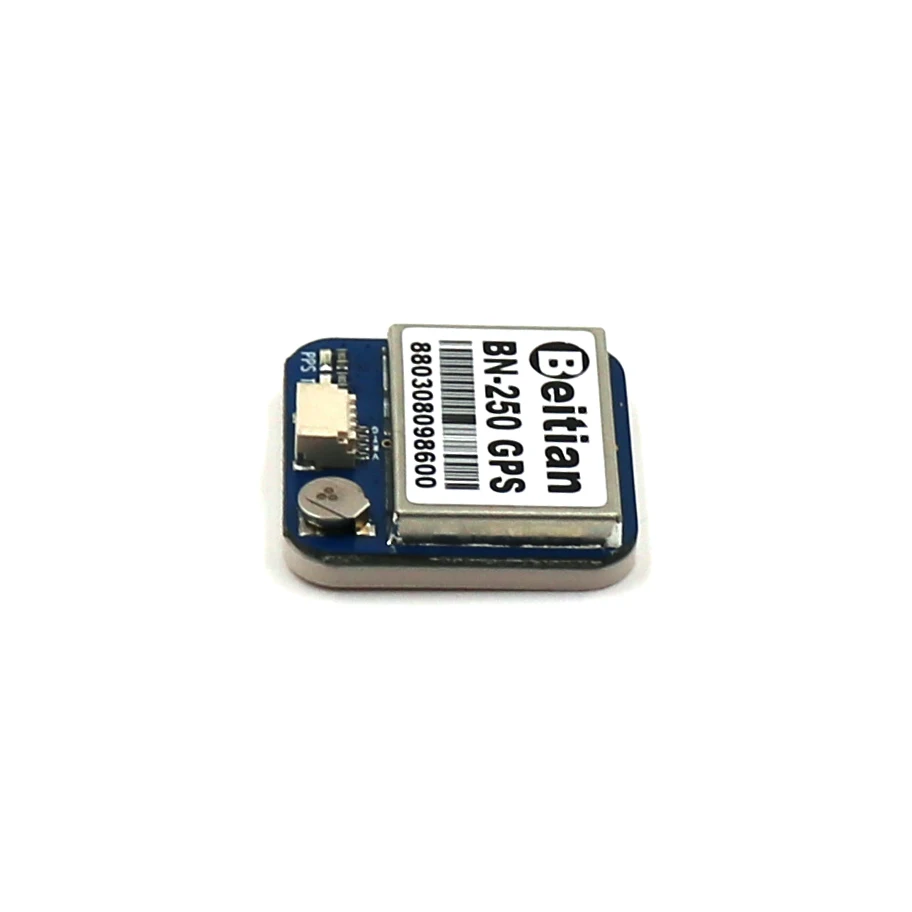

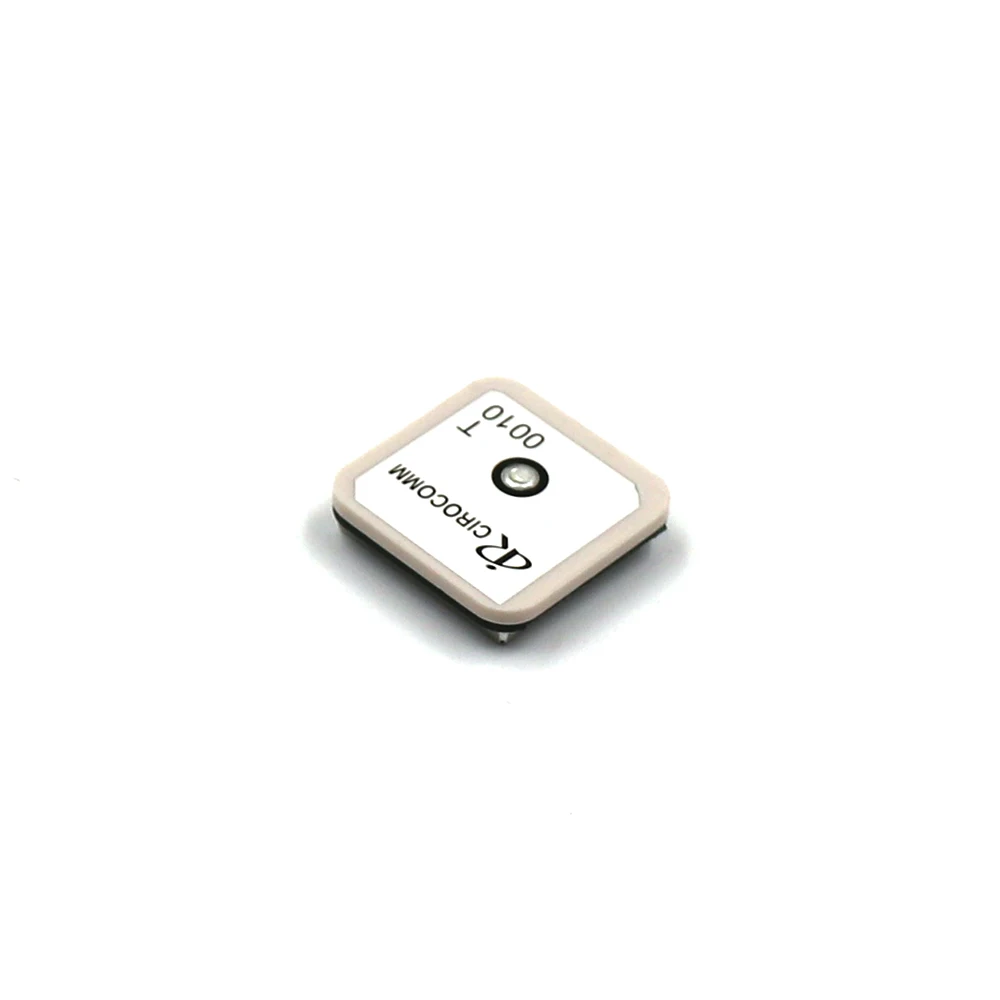

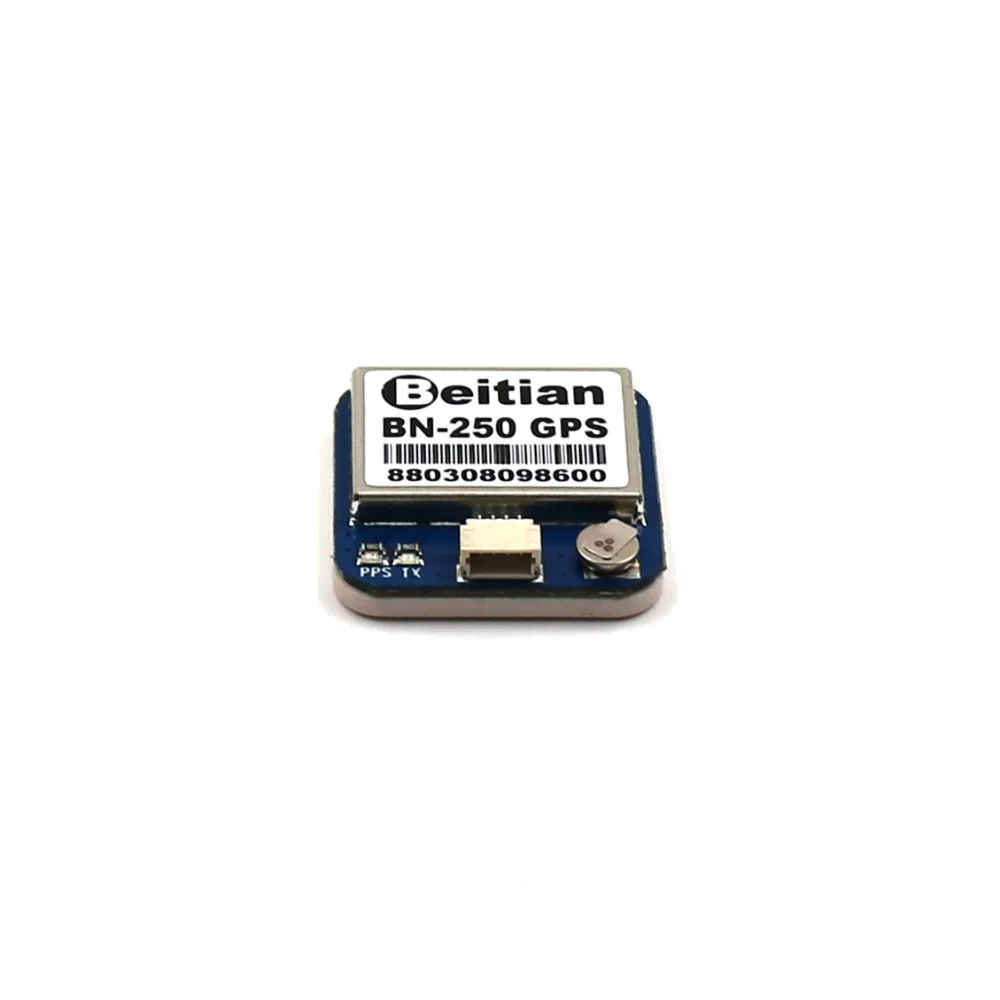

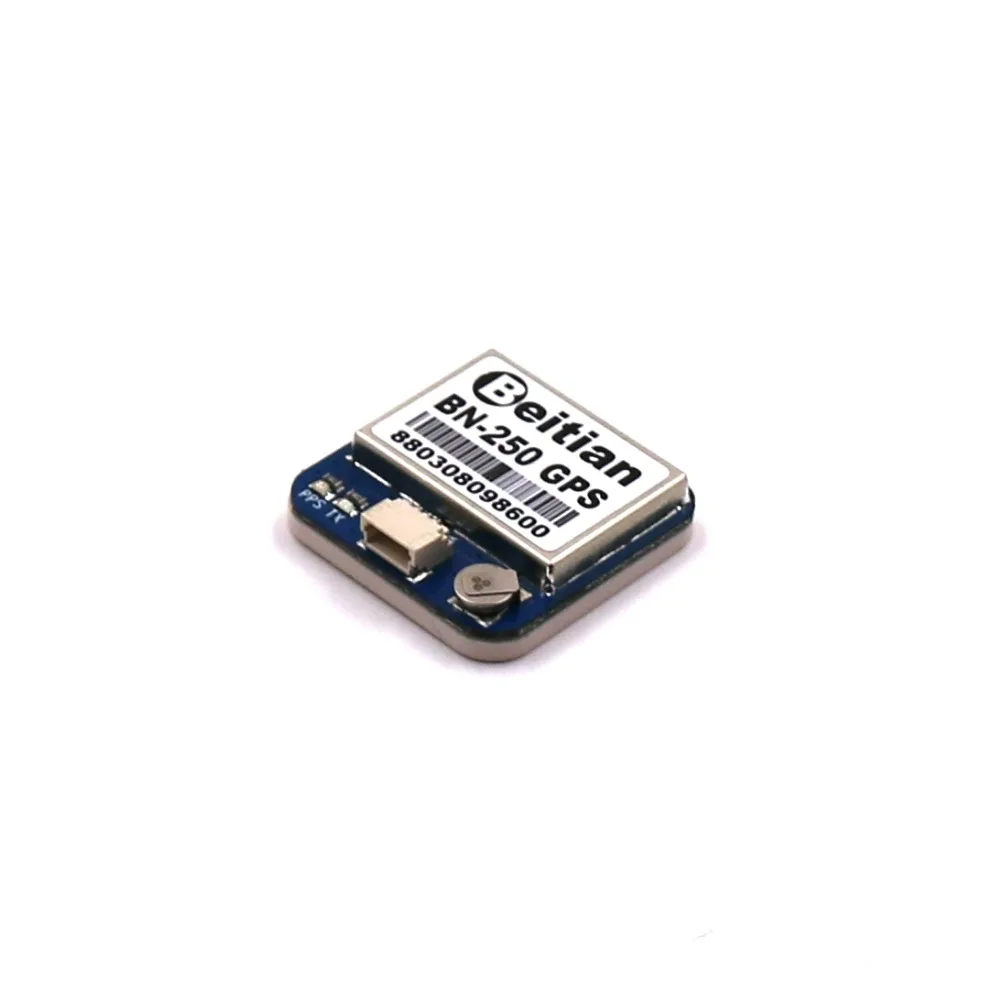

PRODUCT PICTURE





IMG_1017-22222IMG_1020-22222IMG_1005-22222IMG_1006-22222IMG_1007-22222



IMG_1014-22222IMG_1015-22222IMG_1009-22222IMG_1012-22222

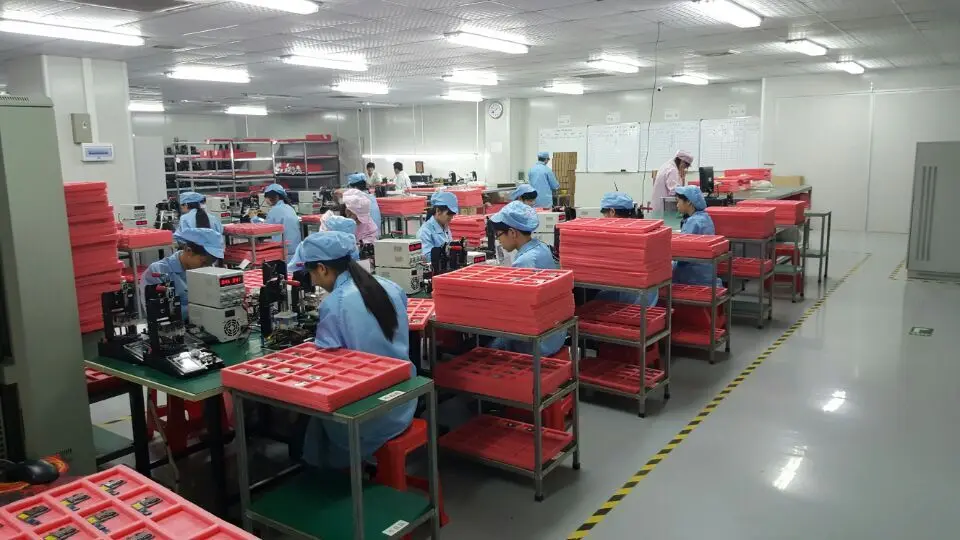

Manufacturing


QQ20151127150132



QQ20151127150356



NMEA-GNSS-E-22公司实力-22
